The SEPLOS V4 DIY battery bundle with EVE LF280K Cells is a complete solution for building your own 48V solar battery system.

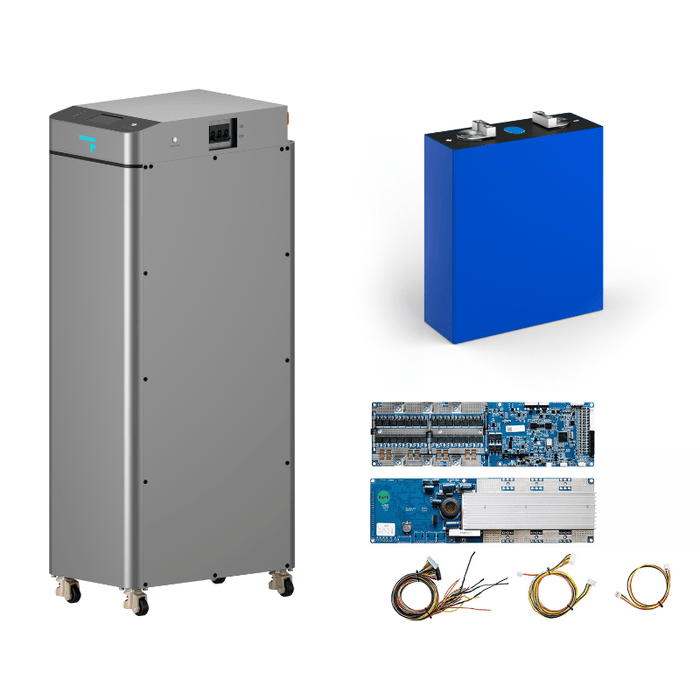

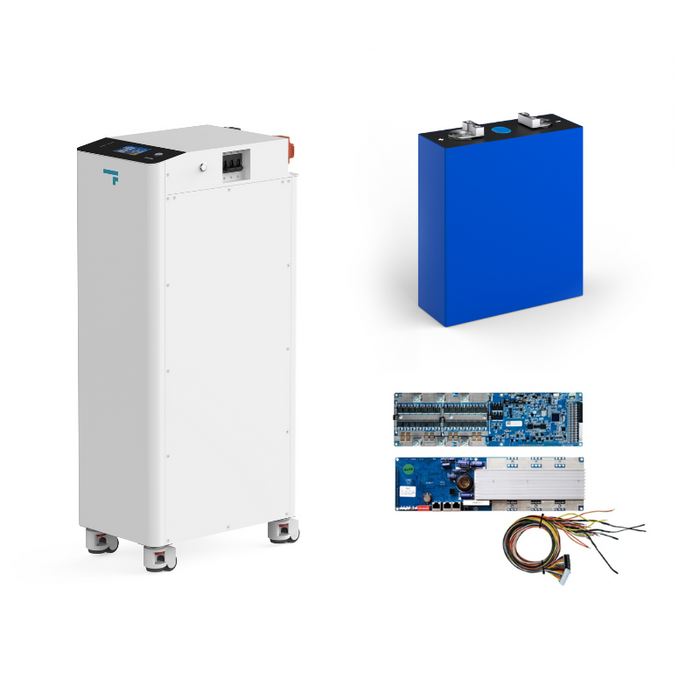

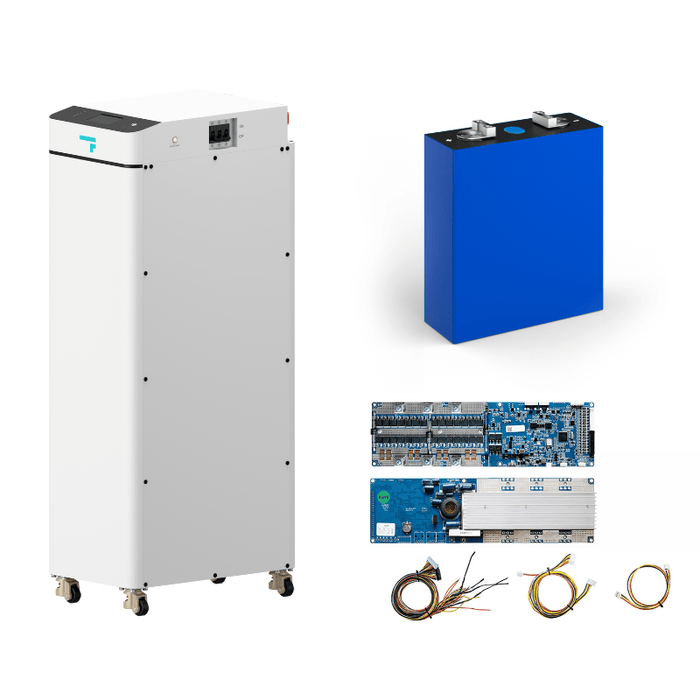

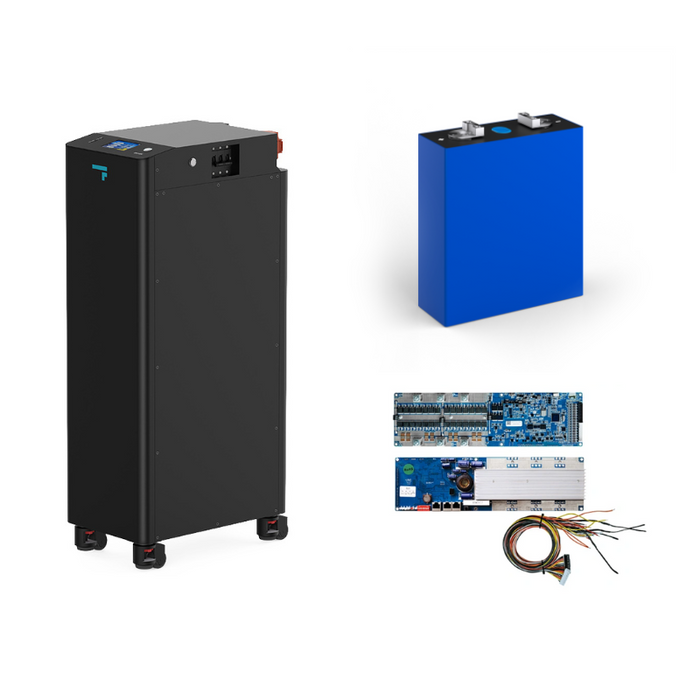

This bundle includes;

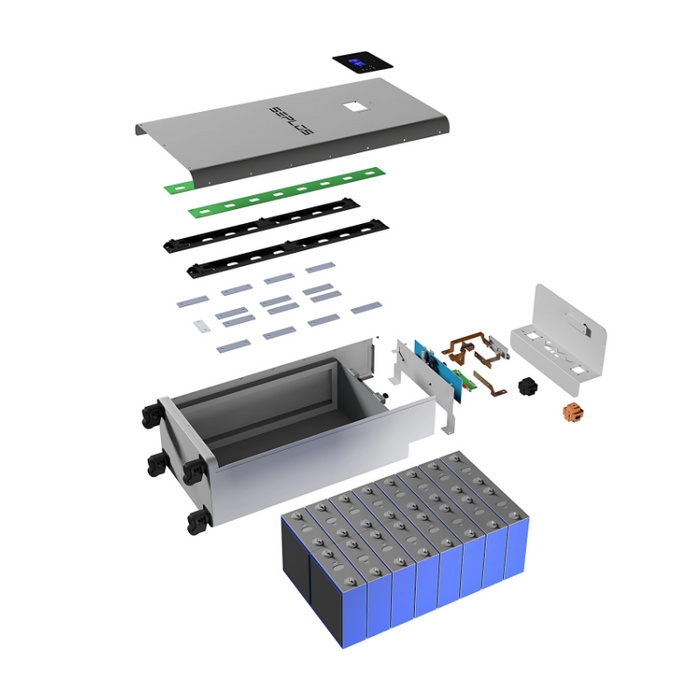

- A SEPLOS V4 Kit
- A SEPLOS V3 BMS
- x16 EVE LF280K Grade A Cells
Key Features:

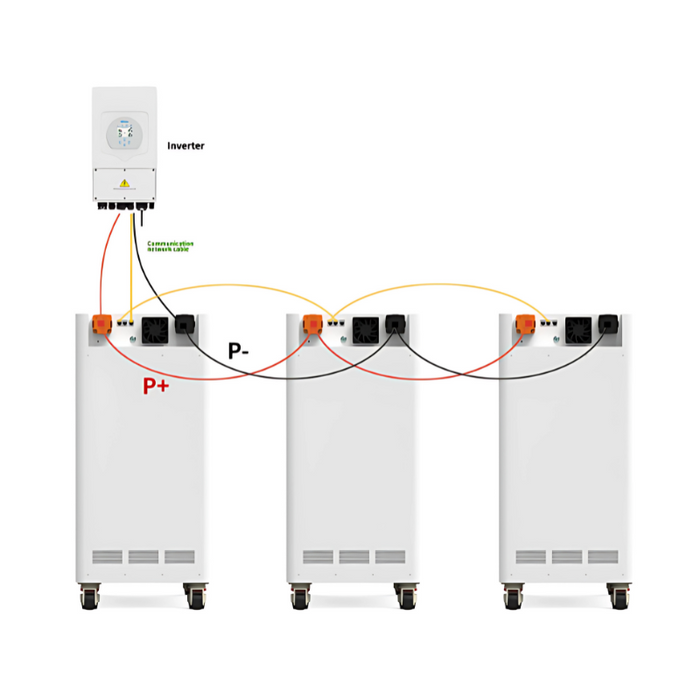

- Modular Design: Expand your battery capacity effortlessly by connecting up to 16 additional packs in parallel.
- Smart BMS: The included V3 SEPLOS BMS (with Bluetooth) seamlessly integrates with various inverters (Victron, Growatt, Sofar, Solis, etc.) via CAN & RS485.
- Intuitive User Interface: Easily monitor battery status, charge/discharge rates, and system performance via the LCD colour screen.
- 250A DC Breaker: Provides reliable protection and safeguards your battery system from excessive currents and short circuits.
- Active Balancing: Provides optimised cell performance and ensures balanced charging and discharging among individual cells.
- LF280K Cells: these 280Ah capacity cells provide superb performance and cycle life with the ability to charge at 0.5C (0.05C termination current up to 3.65V) and discharge at 1C (down to 2.5V).
LF280K Technical Specifications:
- Manufacturer: EVE
- Model: V3 LF280K
- Size: 72mm x 200mm x 172.5mm
- Capacity: 280Ah
- Weight: 5.35KG
- Maximum Discharge: 280A (1C)
- Nominal Voltage: 3.2V
- Cycle Life : 8000 cycles @ 0.5C
- Top: EVE connector, bus bars and screws included.
-
Protection: None
