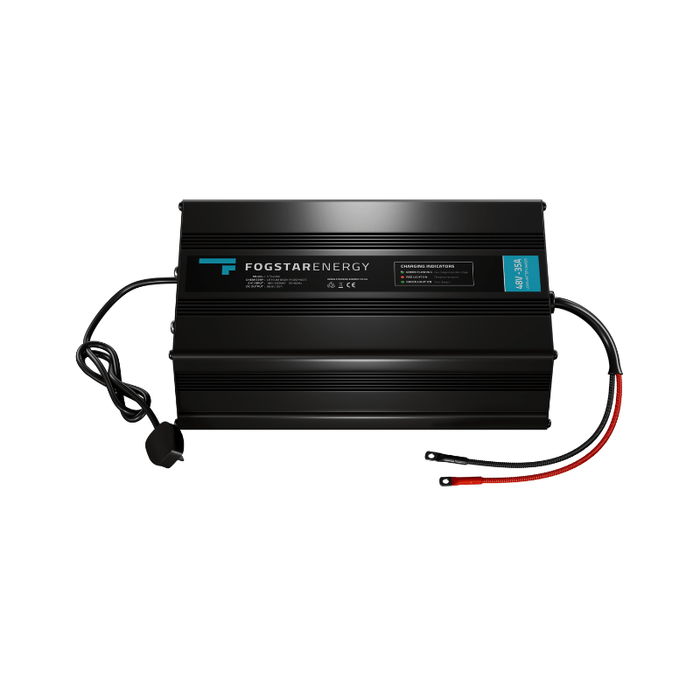

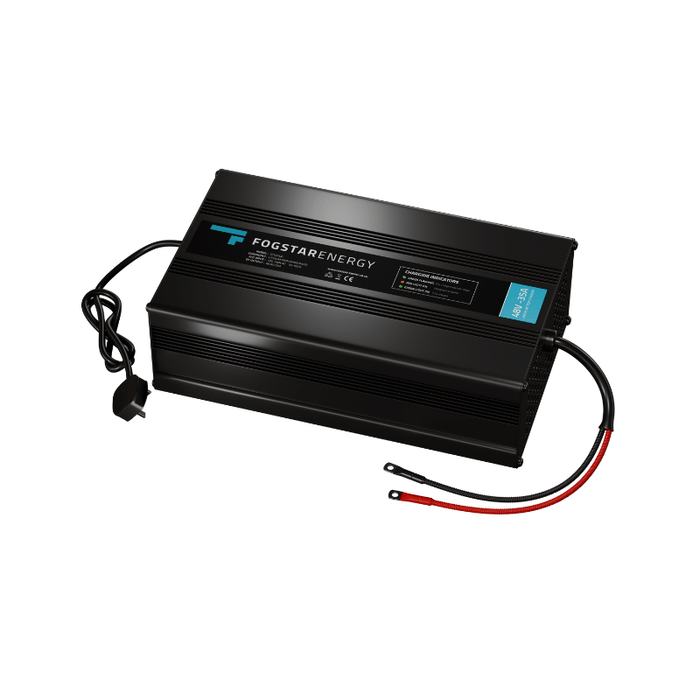

This Fogstar Energy LiFePO4 charger is specifically engineered to work seamlessly with your 48V LiFePO4 batteries, ensuring safe and efficient charging.
Key Features:
- 48V Output: Perfectly suited for charging 48V LiFePO4 battery systems.
- 35A Current: Delivers a powerful charge to get your batteries back up and running quickly.
- Compatible: Ideal for using with all 48V batteries.
- User-Friendly: Designed for ease of use with clear operation and status indicators.
-
Extensive Protections: Built-in safeguards against over-voltage, over-current, short circuits, and reverse polarity for safe and reliable charging.
PRODUCT SPECIFICATIONS
Working Temperature -30°c ~ +40°c
Storage Temperature -40°c ~ +70°c
Relative Humidity 5% ~ 95%
Heat Dissipation Mode Fan Cooling
Input Voltage 180-260 VAC
Input Frequency 50Hz / 60 Hz
Chemistry LiFePO4
DC Output 48V / 35A
Ring connector size M10 (will fit M6 using a washer)
HOW TO CONNECT YOUR CHARGER
- Remove your charger from the packaging
- Retain your packaging
- Ensure the charger air vents are not blocked before connecting
- Connect the black (negative -) cable to the black (negative -) terminal on the battery
- Connect the red (positive +) cable to the red (positive +) terminal on the battery
- Ensure terminal rings are tightened
- Plug your battery charger into the mains and switch ON
- Your battery indicator light should be flashing green (pre-charge inspection stage).
HEALTH AND SAFETY
- Do not disassemble the charger
- Do not leave charger on unattended
- Do not remove the charger cover
- Do not block the charger air vent
- Keep away from heat source
- Keep away from water
- Do not crush, incinerate or modify
- Only use within manufacturers specifications.
